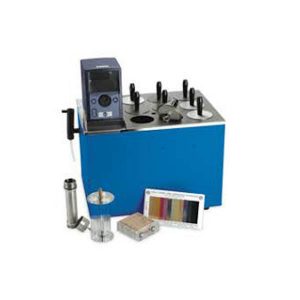

Copper Strip Corrosion Bath

Generally as per requirements of ASTM D 130, IP 227 & equivalent operating temperature range of 5 deg. C above ambient to 100 deg.C Digital temperature display with resolution of 0.1 deg.C. Temperature control to within +/- 0.5 deg. C at 50 deg. C & 100 deg. C. Long life, high safety zone, stainless steel immersion heaters. Inner & Outer of Stainless Steel 304 grade for corrosion resistance. Stirring provided thro’ grease seal for reduced condensation losses Temperature controller isolated from vapours. Bath, with 6 test positions, with lid having hooks for suspending bombs.

ACCESSORIES:

• Copper Corrosion test vessel, stainless steel with O rings, screw type cap, for use upto 100 psi.
• Laminated double sided comparison chart .
• Copper Strips, 3″ X 0.5″ X 12 SWG, pack of 30.
• Bench top vice to hold upto 5 strips for polishing.
• Test Tubes of 25 mm dia & height 150 mm pack of 10.
• Test Tube stand, to hold 3 test tubes of 25 mm dia & height 150 mm.
• Silicon Carbide Paper, 20 each of 100/150/240.
• Silicon Carbide Powder, 150 mesh, 1 kg.
• Thermometers as per ASTM 12C/IP 64C
