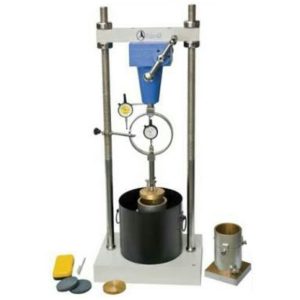

Swell Test Apparatus

The outfit comprises the following.

• One loading unit Hand. operated 5000 kg capacity with two rates of travel
• One Gun metal mould, 100mm dia x 127.3 cm height X 1000 cc volume with base plate & collar
• One perforated swell plate 100mm dia X 16mm thick
• One spacer 100mm dia X 12.7mm thick
• Two porous stone of 100mm dia X 12.7mm thick
• One load transfer bar
• One steel ball & one soaking tank, 250mm dia x 210mm high
• Dial gauge 0.01mm X 25mm travel
• Proving ring of 2.5 KN capacity with calibration chart and carrying case.

Optional Accessories

High sensitivity Proving Ring, 250 kg or 500 kg fitted with 0.002 mm dial gauge with certificate in a nice wooden carrying case.

Dial Gauge 0.01mm x 25mm travel.
