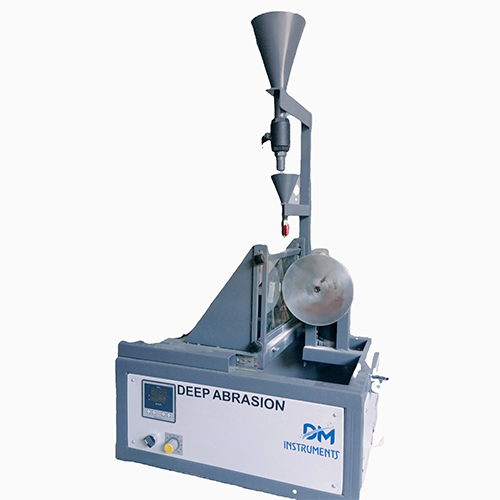

Deep Abrasion Machine for Unglazed Tiles :

Compliance standards
  • EN ISO 10545-6, IS 13630 (Part-12)
Applications
  • Instrument to determine the resistance to Deep abrasion, by measuring the length of the Groove produced on the specimen surface by a disk that turns at controlled angular speed and makes constant pressure onto the specimen. A controlled feed of abrasive material falls between the disc and specimen.
Optional Accessories

    1.Corundum (white fused aluminium) (5 kg)

    2.Austrian granite for the calibration

    3.400 g of lead to modify the weight

    4.special key for removing the abrasive disk.

Features

1.Easy to use and with solid construction

2.Electric operation

3.Mild steel structure body with powder coating paint

4.Electronic control of the disc speed with auto shut-off of the instrument at the achievement of the selected number of revolutions

5.Strictly abiding to listed international standards

Key Features

1.Electro-Mechanical Design

2.Quite and vibration free operation

3.Standard Digital Model with Load Cell and LCD Display

4.Programmable rate of loading

5.Auto stop and Auto reverse upon breaking of the sample

6.Selectable test units – KG / KN

7.Special acrylic guard to protect the user against ceramic sprinkles

8.Maximum load Capacity : 1000 kgf

9.Least Count : 1.0 Kgf

10.Accuracy : 0.2% of Full Scale

11.Can accommodate : Maximum upto 600 x 600 mm Tile size

12.Operation on : 230 Volts, 50 Hz, Single Phase, AC Supply

Technical specifications

1.Diameter of steel disc : 200 ± 0.2 mm

2.Thickness of steel disc : 10 ± 0.2 mm

3.Material of steel disc : Mild steel

4.Speed of rotation of disc : 75 ± 5 rpm

5.Adjustment of force : Adjusted between 5-20 kgs in steps of 1 kg

6.Electric motor : ¼ Hp, single phase, ac motor

7.Counter : 3-Digits electronic counter with memory backup

8.Capacity of storage hopper : 05 Liters
