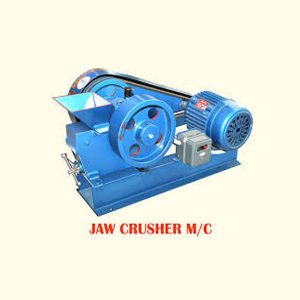

JAW CRUSHER

Laboratory Jaw Crusher is designed to speed up the crushing of aggregate, ores, minerals, coal, coke, chemicals and other similar materials. Its compact and of rugged construction is advantageous for general laboratory or small pilot plant operations.

wo jaws of manganese steel are provided in the jaw crusher. The moveable jaw produces two blows for every revolution, thus reducing over sizing to a minimum. A combination of forward and downward and strokes with a rocking action exerts pressure on the coarse material to pass through the jaws. A hopper is provided at the top for feeding materials. The smooth jaws ensure a uniform product and easy cleaning is possible.

Max Size of feed

50mm (approximately) Product discharge

Size of feed

6mm to 18mm (adjustable)

Capacity

80kG/hr (approximately – based on material)

Operation On

440 volt, 3 Phase, 50hz, A.C. supply with 3H.P.

Electric motor

motor, a starter ‘ v ‘ belt pulley drive and mounting
