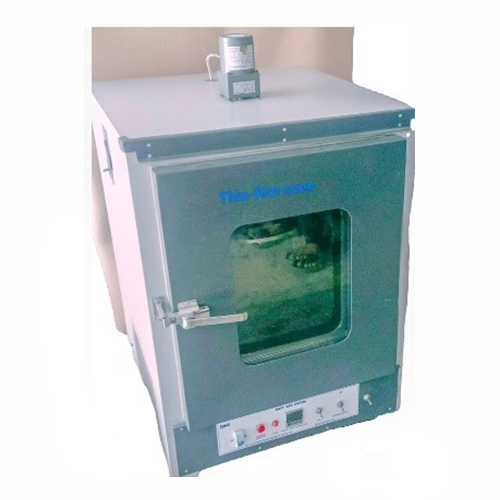

Ageing Oven

As per IS 335 for transformer oil with inside dimension 12″ x 12″ x 14″ thermostatically controlled with air circulation arrangement complete with 4 nos. 400 cc beakers thermostatically controlled.

• With digital controller.
• With contact thermometer & relay.

Optional Accessories

The following accessories are not part of the standard supply and supplied at an extra cost.

• Open clip for converting Close model to open cup test model as per IP 35.
• IP 15C Low Range (-7-1100C x 0.50C) thermometer
• IP 16C High Range (900C – 3700C x 20C) thermometer
• Electric FHP motor with stirrer (in place of hand stirring)
• Voltage varrier temp. controller with digital temperature indicator.

General Description & Specification:

This apparatus is made as per IP 34. ASTM D-93 and IS 1209-1978 method B. The apparatus consists of brass test cup with handle, removable cup cover with spring operated rotating shutter having Oil Test Jet/Gas Test Jet Flame Device. Stirrer with flexible shaft. The assembly rests in air bath, which is covered, with dome shape metal top. The cup is fitted with insulated handle and locking arrangement near cup flange. The assembly is kept on round shaped electric heater with Energy regulator temperature control. Suitable for operation on 220 Volts 50 cycles AC .

Bath only for single test with FHP Stirrer and with DIGITAL TEMP.INDICATOR CUM CONTROLLER but without bomb and accessories.
