Bomb Calorimeter

Compliance standards

• IS 1360 part II : 1970

Details

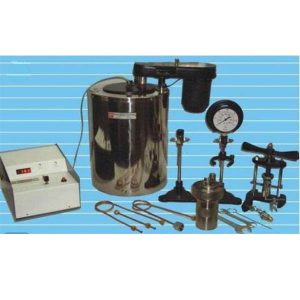

1.Consists of accessories such as calorimeter vessel, Water jacket, Offset stirrer, crucible, Fine adjustment valve with built-in pressure gauge, Ignition wire, Palette press, electronic firintg unit and other dedicated accessories etc Microcontroller based

2.JUMBO size 16 x 2 characters LCD display with backlight

3.Temperature Indication : 16 x 2 character Digit display

4.Temperature Indication range : 0 – 100 °C

5.Differential Temperature Range : 0 – 10 °C (Difference in water temp before & after firing the bomb)

6.Reading Accuracy of Temperature : 0.01 °C

7.Firing Voltage : 12 V AC

8.Thermal printer interface for printing the final result

9.Automatic detection of temperature rise & fall.

10.Automatic operation eliminates the requirement of operator to be continuously

11.Weight of tablet feedable through keypad by user.

12.Water equivalent settable through keypad by user.

13.Automatic alarm on Firing as well as after the test completes.

14.Memory storage for data

15.Dedicated PC Software
