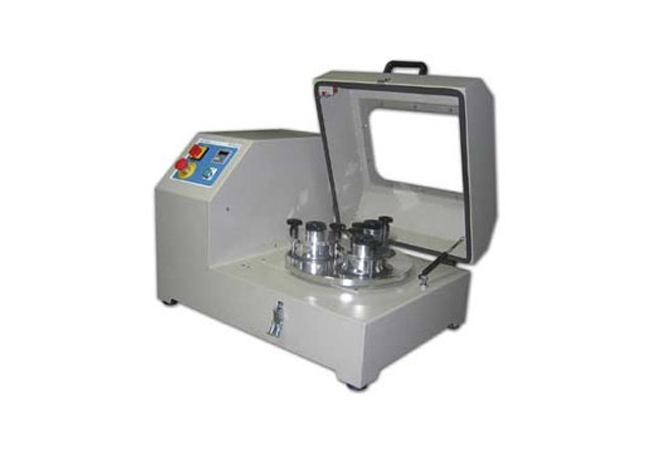

Surface Abrasion Testing Machine:

Compliance standards
  • EN ISO 10545-7, ASTM C1027, IS 13630 (Part-11)
Applications
  • To determine the resistance to abrasion on glazing tiles. The ability of glazed tiles to resist surface abrasion, encountered in everyday use, is determined by abrading the glazed surface either with a wet abrasive media or with a dry abrasive media.
Wet abrasive media
  • Steel balls of 1mm – 5mm diameter
  • Aluminum oxide abrasive powder
Dry abrasive media (Optional accessories)
  • Steel balls of 1mm – 5mm diameter
  • Aluminum oxide abrasive powder
Requirements at operator end
  • Distilled water
alient Feature

    1.Easy to use and with rugged construction

    2.Electronically controlled RPM Indications

    3.Mild steel structure body with powder coating paint.

    4.ARotational speed defined and calibrated at 300 RPM

    5.Strictly abiding to listed international standards

Technical specifications

    1.Eccentricity of axis of rotation of the disc : 22.5 mm

    2.Speed of rotation of disc : 300 ± 10 rpm

    3.Max no of test specimens tested at a time : 4 no

    4.Inside dia of specimen holding ring : 83 mm

    5.Inside height of specimen holding ring : 25.5mm

    6.Dist of center of test area from cent of disc : 195 mm

    7.Electric Motor : 1/4 HP, Single-phase, 230 Volts, AC

    8.Electronic Counter : 4 digits pre-set type electronic counter with memory back up and key-lock reset.
