IP 50 ASTM D217

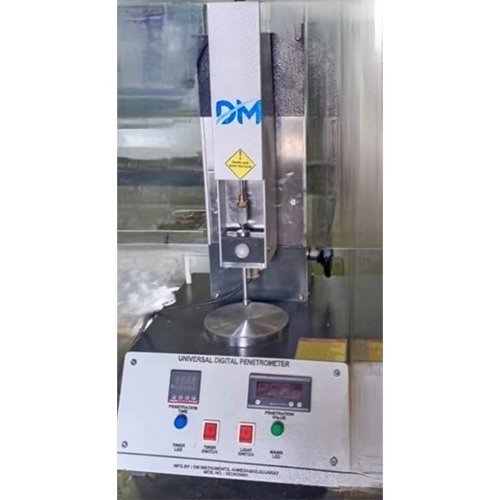

• The cone penetrometer is defined as an instruments which is used to determine theconsisetency or hardness of lubricating grease by measuring the penetration of cone in tenths of milimeter.the term penetration is define as the depth at which standard cone enters the grease sample when released to fall under its own weight for 5 second .
• Applicable Standard : ASTM D217-02
• Penetration range = 0 -400mm
• Division = 1/10mm
• Smooth and polished surface Cone = Brass
• Approximate mass of Cone = 102.50 grams
• Cone tip = Stainless Steel
• Base plate with Levelling screw and spirit Level indication
• Standard Plunger for accurate penetration
• 2 Container for sample preparation
• Height adjustment knob for Cone position digital timer with magnetic Flux mechanism for accurate 5 seconds release timer
