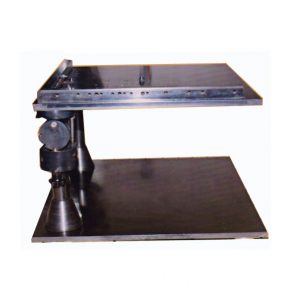

Universal Gauge

  • For measurement of straightness and squareness
  • For measurement of flatness / warpage.
  • Tiles size : 100 x 100mm to 600 x 600mm or according to required size of tiles.
  • Material of Construction : Mild steel duly blackodized
  • Note : The machine is completely made of CNC machine for achieving required accuracy of measurement.

Accessories:

    1. Dial Gauge,

    Make :BAKER OR EQUIVALENT,

    Range : 0 to 10mm

    Qty :03 Nos

    2. Locating Pin,

    Material :M.S. (Duly Blackodized),

    Qty :10 No

    3. Allen Key,

    Size :1.5mm,

    Qty :01 No

    4. Magnetic Stand,

    Size :Suitable,

    Qty :03 Nos

Note:

At the time of placing an order, please advice us about your tiles size which are continuously utilized.

Further, please note that, we will provide you the following sizes of calibrating plate alongwith the Instrument.

  • 1: 300 X 300
  • 2: 450 X 450
  • 3: 600 X 600

Calibrating plate for the following sizes will be available at an extra cost.

  • 1: 400 X 400
  • 2: 500 X 500
  • 3: 600 X 300
