Compliance with following International Standards:

• ASTM D2386, IP 16, NFM 07048, ISO 3013, DIN 51421

Purpose:

• This standard describes a method of determination of the temperature below which solid hydrocarbon crystals may form in turbine and reciprocating engine fuels under cooling conditions, which may occur during flight or on airfield.

Supplied complete with following parts and accessories:

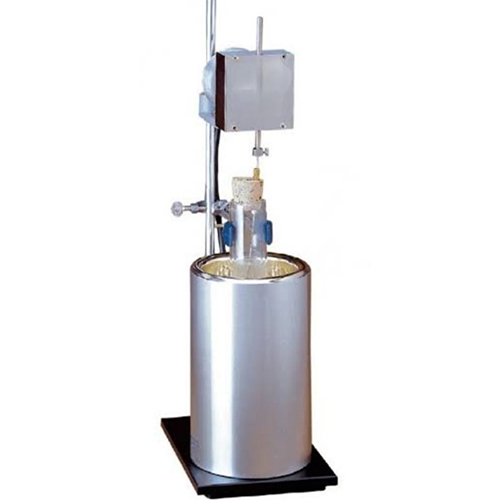

• The entire instrument assembly Consists of unsilvered vacuum flask, jacketed sample tube, brass packing gland, stirrer, stopper, clamps and stand.

Note:

• Operator shall arrange acetone or alcohol cooled by solid carbon dioxide as a cooling medium

Optional Accessories at extra cost:

• Jacketed sample tube (double walls)
• Gland, brass packing for stirrer
• Stirrer
• Vacuum flask unsilvered
• ASTM thermometer 114C
• Cork for sample tube
