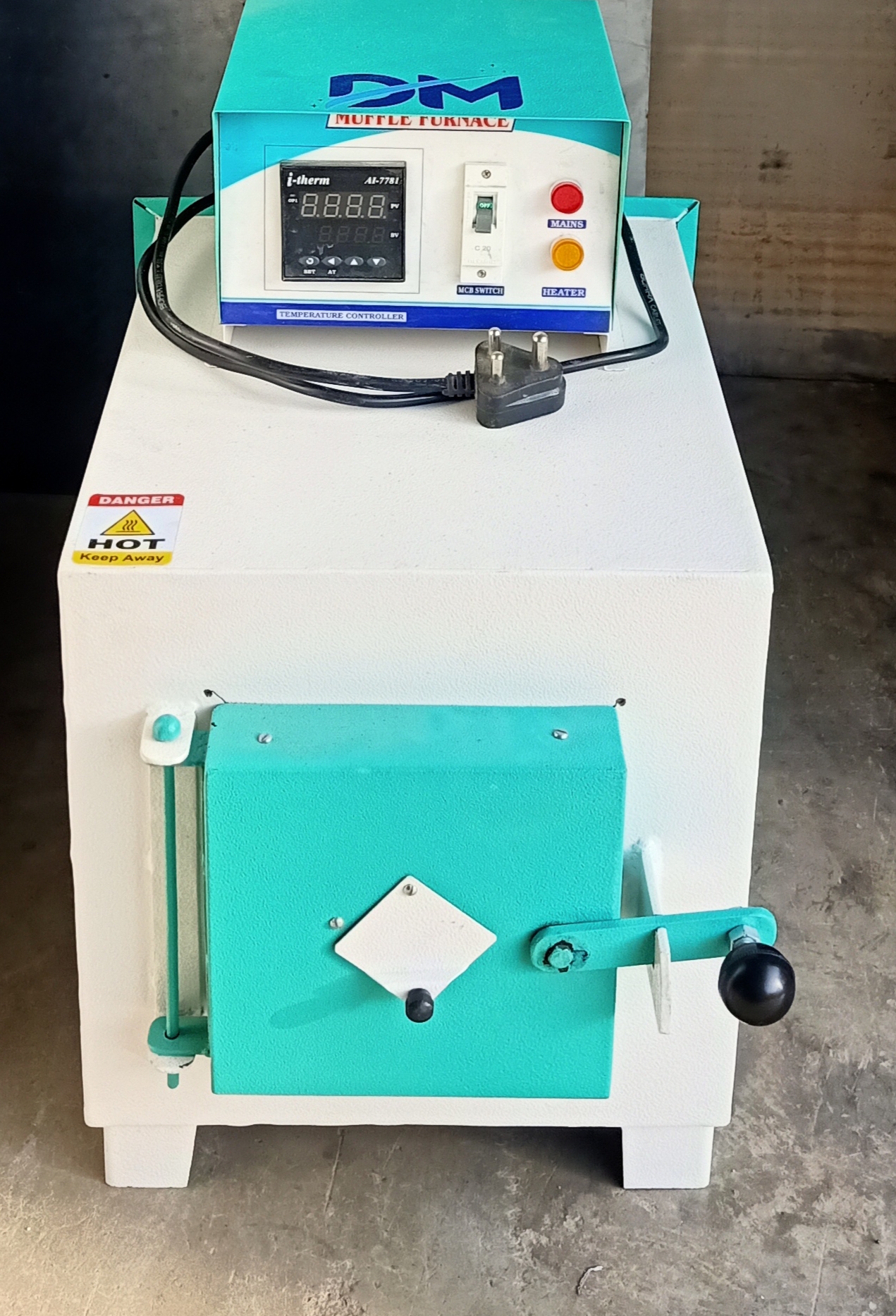

Furnaces

  • In this improved model, ceramic fiber wool insulation (instead of brick insulation) has been provided resulting in weight and size reduction of furnace. The weight and size of the furnace is 1/4 and 30% respectively as compared to brick furnace. The heat up time is less. heat loss is very low-resulting in power saving.
Construction CRC sheet with stoving enamel
Insulation Ceramic fiber wool insulation
Max. Temp. 1200째C
Working Temp 1150째C
Temp.control Dual display microprocessor based Digital temperature indicator cum controller with Cr/A1 Sensor
Heatings KANTHAL APM wire in coil form wound on the muffle, embedded in high grade refractory Cement.
Std.Fittings Compensating cable, indicating lamps, Power plug and cord.
Operation 220/230 Volts AC single phase.
Working size (L X W X D)
225 x 100 x 100 mm
250 x 125 x 125 mm
300 x 150 x 150 mm
300 x 200 x 200 mm
450 x 225 x 225 mm
