Product Description

Wide operating applications.

Suitable for the determination of density of cement for evaluation of the physical properties of different types of hydraulic cements.

The procedure for conducting chemical testes of hydraulic cement is covered in IS: 4032-1985. Different parts lays down the procedure for the tests to evaluate the physical properties of different types of hydraulic cements.

This standard (Part II) covers the procedure for determining the density of hydraulic cement.

The samples of the cement is taken in accordance with the requirements of IS: 3535-1986 and the relevant standard specification for the type of cement being tested. The representative sample of the cement selected as above shall be thoroughly mixed before testing.

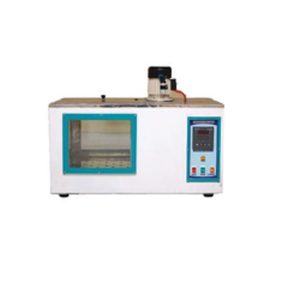

Inner Chamber made up of Stainless Steel (SS-304)

Outer Chamber made of PCGI (Powder Coated Galvanized Steel).

Gap between both the walls is filled with high grade PUF insulation.

Mounted on castor wheel for easy portability.

Fitted with hermetically sealed compressor with environment friendly CFC Free refrigerants.

Low noise level

Top opening door suitable for keeping Le-chatetier flasks.

Stainless Steel lotus type clamps with rubber disks are provided for holding the flask.

Temperature of the bath is maintained at 270C +0.20C with the help of Microprocessor based Digital Temperature Indicator Cum Controller.

Internal circulation enables precise temperature stability/uniformity. Water is uniformly circulated in a closed loop process through a specially designed pump with P.P. (POLYPROPYLENE) Head and assembly.
