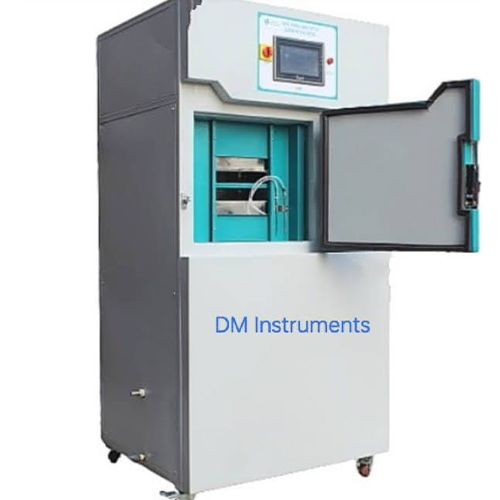

  • Thermal Conductivity Test Apparatus By Guarded Hot Plate Method Is Based On The Steady-State Method And Is Able To Measure 20.5 Cm X 20.5 Cm Test Samples Having Thickness Ranging From A Few Millimeters To 10 Cm
  • Design Concept Of Apparatus According To Indian Standard (IS : 3346-1966) And Applicable ASTM Standard ASTM C177
  • External Body Is Manufactured From Mild Steel Material, Which Is Powder Coated In Attractive Shades
  • Specimen To Be Tested Is Placed In Chamber Such That It Gets Sandwiched Between Two Heat Flux Sensors As Per ASTM C177 Guidelines.
  • Unit Is Equipped With 5 Different Thermocouples For Temperature Measurement On Either Side Of Test Specimen And Guard Heaters (In Total 10 Thermocouples).
  • Cooling Is Obtained By In-Built Mini-Chiller System, Which Provides. Efficient Cooling Temperature As Per Test Requirement.
  • Chiller System Composed Of Condenser, Compressor And Cooling Coil With CFC Free Refrigerant.
  • Complete Panel Mounted Electrical Controls And Measurement. All Control Accessories Are Within Reach.
  • Equipped With Digital Temperature Indicator Cum Controller To Precisely Measure And Indicate The Temperature Values.
  • Instrument Will Also Be Fitted With Thermal Printer To Print The Test Results Instantly On Site.
  • System Will Also Be Supplied With 8 Channel Data Logger To Log The Temperature Data Of All 6 Thermocouples.
  • Instrument Is Also Supplied With Dedicated Jockey, Which Facilitates An Operator To Manually Move Top Plate Upward Or Downward With Operation Ease
  • The Complete Instruments Can Also Be Supplied With Dedicated PC Software For To Log, Modify And Analyze The Measurement Results (Optional – See Optional Accessories)
  • Suitable For Industrial Applications Such As Thermal Conductivity Measurement of AAC Blocks, Concrete Slabs, Dimensional Stones, Marbles Etc.

Brief Construction Details :
