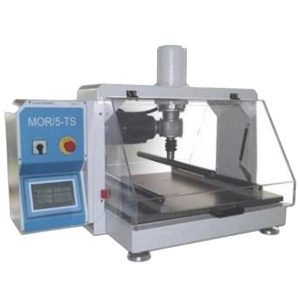

MOR Test :

Compliance standards

• EN ISO : 10545 (Part – 4), IS : 13630 (Part – 6)

Applications

• To determine the breaking strength value (Maximum load) of Ceramic tiles.

Note

• 3 KVR servo controlled stabilizer is recommended

Optional Accessories

1.Standard PC Software to log and modify the series of results for future provisions

2.Closed loop programmable servo mechanism with position feedback (encoder) system.

Key Features

1.Electro-Mechanical Design

2.Quite and vibration free operation

3.Standard Digital Model with Load Cell and LCD Display

4.Programmable rate of loading

5.Auto stop and Auto reverse upon breaking of the sample

6.Selectable test units – KG / KN

7.Special acrylic guard to protect the user against ceramic sprinkles

8.Maximum load Capacity : 1000 kgf

9.Least Count : 1.0 Kgf

10.Accuracy : 0.2% of Full Scale

11.Can accommodate : Maximum upto 600 x 600 mm Tile size

12.Operation on : 230 Volts, 50 Hz, Single Phase, AC Supply
