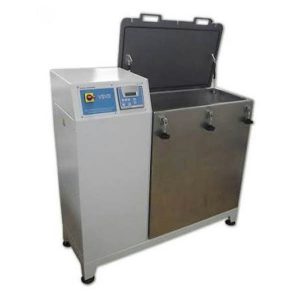

Water bath for Water Absorption :

Compliance standards

• EN ISO 10545-3, EN ISO 10545-9, IS 13630 (Part-2)

Purpose

• For water absorption test and bulk density test of ceramic tiles. The tiles will be placed vertically in the slots provided to conduct the water absorptions characteristic test.

Salient Features

1.Double walled in construction

2.Stainless Steel Inner chamber

3.Mild steel exterior body

4.Paint : Powder coating

5.Temperature ranges : 5 °C above ambient to 100 °C

6.Temperature controller : Digital Auto-tune PID Controller

7.Operates on : 230 Volts, 50 Hz, Single Phase, AC Supply

8.High speed stirrer to maintain uniform temperature distribution

9.Immersion heater to achieve the set point temperature

10.Accommodate test specimen up to 600 x 600 mm size with special S.S. Stand

11.Unique arrangement to place tiles vertically with no contact between them.
